Baltimore & Ohio Railroad

Locomotive Number 60,000 was tested on the Baltimore & Ohio Railroad during the months of November and December, 1926. These tests were conducted on the East End of the Cumberland Division, between Brunswick and Keyser, Maryland, a distance of 109 miles; on the Connellsville Division, between Cumberland, Maryland, and Connellsville, Pennsylvania, a distance of 90.5 miles; and on the Pittsburgh Division between Connellsville and New Castle junction, Pennsylvania, a distance of 109.4 miles.

Seven round trips were made on the Cumberland Division, nine on the Connellsville Division and two on the Pittsburgh Division, the total mileage covered being 2770. The locomotive was in excellent condition, as it had been thoroughly overhauled at the plant of the builders before being delivered to the Railroad Company.

Baltimore & Ohio dynamometer car number 930 was used between the tender and train on all the tests. The locomotive was fitted with steam indicators and reducing motion to all cylinders, and indicator cards covering every condition of speed and reverse lever position were taken. Temperature and pressure of the steam in the steam chest, temperature of the exhaust steam, smokebox gases, water to and from the heater, receiver pipe pressure, and draft ahead of and behind the diaphragm on the horizontal center line of the smokebox were recorded.

The coal used was measured in a box, having a capacity of 920 pounds of run of mine gas coal. The water space in the tender had been previously calibrated, and the quantity of water used was determined by means of a float.

On each division, the same engine crew handled the locomotive on all runs, and the trips were made by daylight.

Cumberland Division, East End-Between Keyser and Brunswick the general trend is descending eastbound and this is also the direction of the loaded movement. The maximum ascending grade is 0.73 per cent, between Opequon and Hobbs, a distance of 7.3 miles. Westbound the steepest ascending grade which reaches a maximum of 0.87 per cent, is between Brunswick and Hobbs, a distance of 15.2 miles. There are frequent curves of between five and six degrees, the maximum curvature being approximately ten degrees.

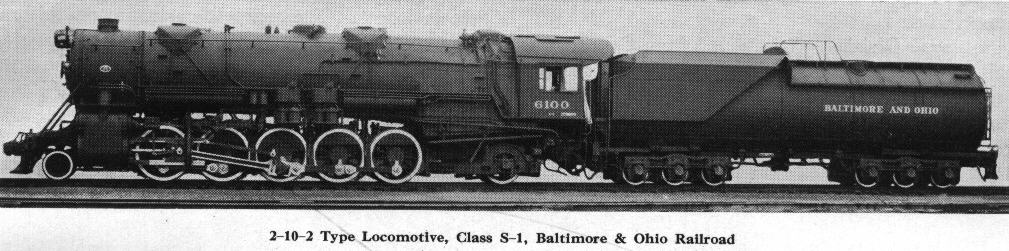

2-10 2 Type Locomotive, Class S-1, Baltimore & Ohio Railroad

Cylinders                 291/4" x 32"
Drivers, diam.                     64"
Steam pressure                 220 lb.
Grate area                88.7 sq. ft.
Water heating surface     5244 sq. ft.
Superheating              1470 sq. ft.
Weight on drivers          347,230 lb.
  "   total engine         436,510 lb.
Tractive force              82,730 lb.
There was an opportunity on this division, to compare the performance of Locomotive Number 60,000 with that of the Baltimore & Ohio's standard 2-10- 2 type, designated by the Railroad Company as Class S-1. This locomotive uses superheated steam at a pressure of 220 pounds, and develops a tractive force of 82,730 pounds. On a drawbar horsepower hour basis, Number 60,000 showed an economy in coal consumption of 16 to 18 per cent, and in water of 20 to 22 per cent, while the evaporation was almost nine per cent greater than in Class S- 1.

Connellsville Division.-This is a mountain division, with a summit at Sand Patch, 33.4 miles west of Cumberland and approximately 59 miles east of Connellsville. Westbound out of Cumberland, the maximum ascending grade to Sand Patch is 1.52 per cent. The line then descends to Connellsville, the maximum grade being one per cent. Helpers are used in both directions with full tonnage trains.

Pittsburgh Division.--Westbound from Connellsville, on this division, the grades are light and generally descending to Laughlin junction, a distance of about 52 miles. Between Laughlin junction and New Castle junction, the profile is undulating. Westbound, there is a grade of 1.31 per cent, IY2 miles long, and a grade of 1.05 per cent, 6Y2 miles long. Eastbound there is a grade of 0.68 per cent, eight miles long, and a grade of 0.90 per cent, one mile in length. The sharpest curvature on this run is 14 degrees 25 minutes.

The following table gives the results of the tests on these three divisions of the Baltimore & Ohio Railroad. The data for the Connellsville Division covers the runs on ascending grades only, or from Connellsville to Sand Patch eastbound, and Cumberland to Sand Patch westbound.

Picture Greeting Locomotive 60,000 at Eddystone on its Return from the Trans-continental Trip

                                                   CUMBERLAND DIVISION, EAST END      CONNELLSVILLE DIVISION    PITTSBURGH DIVISION
                                              |-----------------------------|----------------------------|-------------------|
                                                                 TEST WITH HEAVY
                                              AVERAGE OF FIVE          TONNAGE,                                Eastbound, Westbound,
                                                   TRIPS             DEC. 9, '26    AVERAGE OF FOUR              Average  Trip of
                                              East-     West-     East-  Cherry Run    TRIPS                     of Two   Dec. 29,
                                              bound     bound     bound  Low Grade    A         B         C      Trips      '26
Mileage of test..........................     109.2    109.03     109.4    10.75    59.65     33.5      33.3     109.4     109.5
   "    running, throttle open...........     84.35    102.34     85.17    10.75    58.95     33.1      33.0     97.45     77.25
Average speed over division, M.P.H. .....     18.25     18.05     17.87    .....    17.30    12.05     11.85     17.81     16.51
   "    "    running, throttle open......     20.74     20.30     18.75    17.00    19.11    13.16     13.44     20.95     20.21
   "    throttle opening, per cent.........    72.5     74.09     67.51      100    91.32    89.60     88.88     81.15     46.07
   "    cut-off, H. P., per cent...........    66.3      64.6     53.90    86.77    68.85    80.89     80.98     71.38     76.58
   "       "     L. P.   "   "  ...........    49.2      48.2     48.80    70.00    50.91    62.02     62.10     53.80     57.77
No. cars, including dynamom. and caboose ..    86.3     119.9        92       92    58.22      108     39-38       121    56-55-53
Actual tonnage behind tender.............     6,427     2,591     6,867    6,867    2,563    2,358  2,915-2,837  2,817  (4,073-4,002
                                                                                                                        (  -3,869
Adjusted                   .............      7,805     3,529     8,247    8,247    3,082    3,111  3,188-3,103  5,010  {5,763-5,662
                                                                                                                        {   -5,459
Pounds resistance per ton, level...........    3.18      7.96      3.39    .....     7.14     7.23      2.51    ......   .......
Average drawbar pull, pounds.............    32,572    31,600    33,759   60,093   36,270   43,278    44,151    35,406    30,366
  "             horse-power.............    1,803.2     1,705     1,685    2,724    1,847    1,518     1,582     1,974     1,636
  "     temperature, water to heater......     42.9      42.3      52.9     42.0       39     38.8      38.5      40.4      39.4
  "          "         "   from heater....    193.7     198.0     207.6    216.4    205.9    204.6    208.60     201.5     178.9
  "          "       steam in steam chest.   670.21     676.1     675.3    698.3    681.5    681.9     676.3     674.4     632.6
  "          "         "    " exhaust pipe    236.1     249.2     255.5    273.3    230.2    243.4     232.3     219.8     197.0
  "          "       smokebox gases......     509.1     503.3     513.2    530.5    513.7    512.5     500.6     507.6     493.6
Boiler pressure, average..................    336.6     338.5     335.9    341.2    333.4    330.2     339.3     334.0     337.0
Average superheat in steam chest..........    237.9     246.1     259.1    .....    250.1    261.0     255.1     260.7     235.3
Total coal used, pounds.................     25,438    28,934    26,450    5,290   20,700   15,697    15,410    31,134    25,300
  "    "   per hour, running (pounds)...... 4,037.5     4,500     4,159    6,373    5,803    5,646     5,484     4,914     3,420
Coal used per 100 ton-miles...............     3.63     10.20      3.52     7.16    13.65    19.93     15.90     10.09      5.74
  "   "    "  drawbar H. P.-hour.........      2.25      2.64      2.46     2.34     3.14     3.47      3.36      2.49      2.09
Total water evaporated, pounds...........   172,532   201,788   194,031   36,641  143,683  110,899   112,056   211,188   189,540
Water evaporated per 100 ton-miles........    24.60     71.29     25.83    49.63    94.65    140.4     115.6     68.51     43.05
  "      "        "  drawbar H.P.-hour..      16.01     19.61     18.81    16.20    22.54    26.21     25.29     17.39     17.47
Actual evaporation per pound coal........      6.79      7.04      6.S2     5.87     6.94     7.09      7.28      6.78      7.49
Equivalent evaporation from and at 212 F.      9.33      9.69      8.93     8.16     9.60     9.83     10.12      9.35     10.19
Coal, B.T.U. per pound.................      13,637    13,764    14,029   14,029   13,306   13,523    13,797    13,060    12,995
Boiler efficiency, per cent.................  66.36      68.0      61.7     56.4     70.0     70.0      71.0      69.7      76.1
69


A- Eastbound,  Connellsville to Sand Patch
B- Westbound, Cumberland to Sand Patch
C- Slow Freight, Cumberland to Sand Patch

THE BALDWIN LOCOMOTIVE WORKS

Chicago, Burlington & Quincy Railroad

Locomotive Number 60,000 was tested on the Beardstown Division of the Chicago, Burlington & Quincy Railroad during the month of February, 1927. The Beardstown Division taps the bituminous coal fields of Illinois, and is a comparatively level line, the maximumgrade against loaded traffic being 0.3 per cent.

The tests were run to compare the performance of Locomotive 60,000 with that of the Burlington's standard Class M-2-A locomotives of the 2-10-2 type. Engine 6157, which was in as good mechanical condition as Number 60,000, was selected for this purpose. Both locomotives were handled, on all the tests, by the same engine crew. The dynamometer car was used to record the speed, drawbar pull, and horse-power, and the coal was measured in a box holding 850 pounds.

While the starting tractive forces of these two locomotives were nearly the same, engine 60,000 showed a considerably greater horse-power capacity with increasing speed. Thus, at 15 miles an hour it developed 19 per cent more drawbar pull than engine 6157, while at 30 miles an hour, the increase was 58 per cent. The average amounts of coal and water used per drawbar horse-power, on all the tests, were as follows:

                                                 CLASS
                                                 M-2-A      BALDWIN
                                                  6157       60,000

Average drawbar horse-power developed.        .  1465        1790
Coal per drawbar horse-power-hour,
  pounds.............................             4.5         3.6
Water per drawbar horse-power-hour,
  pounds.............................            24.8        19.9
Saving in coal by engine 60,000..................             20%
  "     " water by engine 60,000................            19.8%
Between Beardstown and Galesburg, where the locomotives were worked at maximum capacity with loaded trains, engine 6157 hauled 6800 tons and engine 60,000, 7,300 tons. On a 100 ton-mile basis engine 60,000 saved 24.8 per cent in coal and 24.2 in water, as compared with engine 6157. The same tonnages were handled by the locomotives from Centralia to Beardstown, and here the savings effected by engine 60,000 as compared with engine 6157, in coal and water consumed per 100 ton-miles, were respectively 16.2 and 24.4 per cent.


2-10-2 Type Locomotive, Class M-2-A, Chicago, Burlington & Quincy Railroad

Cylinders        30' x  32'      Grate area              88 sq. ft.
Drivers, diam.          60'      Water heating surface 5342 sq. ft.
Steam pressure     200  lb.      Superheating          1262 sq. ft.

Weight on drivers          310,600 lb.
   "   total engine        388,600 lb.
Tractive force              81,600 lb.

Southbound from Galesburg to Centralia, hauling empties, the locomotives were not loaded to capacity except on one grade, where engine 6157 had a limit of 110 cars, and engine 60,000 a limit of 125 cars. On this run, engine 60,000 showed a saving in coal and water per 100 ton-miles, of 15.4 and 19.4 per cent respectively, as compared with engine 6157.

Further particulars of the results of these tests are given in the following statement:

CHICAGO, BURLINGTON & QUINCY RAILROAD.

RESULTS OF TESTS OF CLASS M-2-A LOCOMOTIVE 6157 AND BALDWIN LOCOMOTIVE 60,000 BETWEEN BEARDSTOWN AND GALESBURG

                                                        ENGINE      ENGINE
                                                          6157      60,000

Beardstown to Galesburg:
   Distance, miles...............................           69          69
   Tonnage rating...............................          6800        7300
   Hundred ton-miles per year, using average M-2-A
      mileage...................................       898,552     964,622
   Trips with M-2-A to equal one trip with engine
      60,000...................................          1.074       1.000
   Pounds of coal per 100 ton-miles................       9.25        7.05
      "   "  water per 100 ton-miles..............        50.5        38.3
   Tons of coal to move 96,462,200 ton-miles.......     4835.8      3638.3
   Thousand gallons of water to move 96,462,200 ton-
      miles......................................       5848.1      4433.4

Galesburg to Beardstown:
   Distance, miles...............................           72          72
   Tonnage rating..............................           2500        2500
   Hundred ton-miles per year, using average M-2-A
      mileage....................................      344,650     344,650
   Pounds of coal per 100 ton-miles................      13.20       11.00
     "     " water per 100 ton-miles..............        73.2        59.2
   Tons of coal to move 34,465,000 ton-miles........    2533.9      2028.3
   Thousand gallons of water to move 34,465,000 ton-
      miles......................................       3027.4      2448.4

RESULTS OF TESTS 01: CLASS M-2-A LOCOMOTIVE 6157 AND BALDWIN LOCOMOTIVE 60,000 BETWEEN BEARDSTOWN AND CENTRALIA

                                                        ENGINE     ENGINE
                                                          6157     60,000
Beardstown to Centralia:
   Distance, miles...............................        132.5      132.5
    Tonnage rating (empties)......................        2200       2500
    Hundred ton-miles per year, using average M-2-A
      mileage....................................      297,550    338,125
    Trips with M-2-A to equal one trip with engine
      60,000.....................................        1.136      1.000
    Pounds of coal per 100 ton-miles................     12.85      11.00
      "    "  water per 100 ton-miles..............       73.8       59.2
    Tons of coal to move 33,812,500 ton-miles........   2323.8     1989.9
    Thousand gallons of water to move 33,812,500 ton-
       miles......................................      2993.5     2402.0

Centralia to Beardstown:
    Distance, miles...............................       132.0      132.0
    Tonnage rating...............................         6800       7300
    Hundred ton-miles per year, using average M-2-A
      mileage....................................      916,300    983,675
    Trips with M-2-A to equal one trip with engine
      60,000.....................................        1.074      1.000
    Pounds of coal per 100 ton-miles................      6.20       5.20
      "    "  water per 100 ton-miles...............     38.50      29.10
    Tons of coal to move 98,367,500 ton-miles........   3264.2     2736.6
    Thousand gallons of water to move 98,367,500 ton-
      miles......................................       4546.6     3555.0

Locomotive 60,000 Under Test on the Atchison, Topeka & Santa Fe Railway

Atchison, Topeka & Santa Fe Railway

Locomotive Number 60,000 was received by the Santa Fe System at Fort Madison, Iowa, on February 24, 1927. It was there fitted with test equipment, and then hauled a tonnage train to Clovis, New Mexico. This preliminary run was of value because of the experience gained in handling the locomotive.

The tests were conducted on the First and Second Districts of the Pecos Division between Clovis and Belen, New Mexico. Between Clovis and Mountainair, a distance of approximately 200 miles, the ruling grade in each direction is 0.6 per cent. Westbound, however, conditions are far more severe than when going east, on account of the length of the grades. Between Mountainair and Belen, a distance of 40.5 miles, there is a steady descent, the ruling grade against eastbound trains being 1.25 per cent for the greater part of the distance. This is normally a pusher grade, but on the majority of the runs with Locomotive Number 60,000, the tonnage was adjusted to suit the capacity of the engine.

The Santa Fe dynamometer car was used on these tests, and the locomotive was fitted with a three-inch water meter on the right side, a four- inch water meter on the left (pump) side, a feed-water thermometer, smoke-box and steam chest pyrometers, and gauges for steam chest, receiver, and back pressure. A front end cinder catcher was also applied. The tender coal space was calibrated, and a check of the coal used was made from scales attached to the coal chutes.

Pool turn engineers and firemen were used on these runs, and also a regularly assigned fireman; while the Fuel Supervisor of the Pecos Division was on the tests, to assure uniform handling of the locomotive. Crews were changed at Vaughan in each direction.

The heaviest work on these tests was done between Belen and Mountainair, eastbound. The following table gives the results obtained on three trips, as compared with two trips made with locomotives of the 3800 class (2-10-2 type) used by the Santa Fe System:

PERFORMANCE OF LOCOMOTIVE NUMBER 60,000, AND 3800 CLASS LOCOMOTIVES, BELEN TO MOUNTAINAIR

Run number...........              8-B       10-B      12-B        2-C       4-C
Locomotive............          60,000     60,000    60,000       3813      381S
Pusher locomotive......           None       None      3813       None      3827
Train:
   Tons................           2304       2490      5080       2303      4636
   Cars................             46         53       104         40        97
Distance, miles.........          40.6       40.5      40.8       40.6      40.7
Average drawbar pull,
   pounds.............          43,400     49,600    52,300     46,200    51,200
Average drawbar horse-
   power..............            1660       1815      1450       1490      1665
Average speed, m. p. h..  .       14.4       13.7      10.4       12.1      12.3
Running time..........            2-50       2-57      3-55       3-21      3-20
Coal fired, pounds......        16,900     18,100    20,800     21,300    22,500
Water evaporated, actual,
   pounds..............        109,600    115,500   137,700    141,300   144,500
Coal per hour, pounds...          5980       6140      5310       6360      6760
Water per hour, pounds..        38,800     39,200    35,200     42,200    43,400
Rate per hour, pounds:
   Per sq. ft. grate area..       72.5       74.5      64.4       72.1      76.6
      "    "    evaporating
     surface............          7.48       7.55      6.78       7.95      8.18
 Ratio water to coal......        6.49       6.39      6.62       6.64      6.43
Considering all the tests made between Clovis and Test Belen, in both directions, Locomotive 60,000 showed the Results following results as compared with locomotives of the 3800 class:

2-10-2 Type Locomotive, 3800 Class, Atchison, Topeka & Santa Fe Railway

Cylinders          30' x 32'      Grate area                  88.3 sq. ft.
Drivers, diam.           63'      Water heating surface       5311 sq. ft.
Steam pressure       195 lb.      Superheating                1298 sq. ft.

Weight on drivers           309,300 lb.
  "    total engine         396,600 lb.
Tractive force               75,700 lb.
The thermal efficiency at the drawbar, or the relation of useful work to energy in the fuel, was 27 per cent greater.

The total water per 1000 ton-miles was 21.6 per cent less, and the water from the tender was 27.0 per cent less.

The coal per 1000 ton-miles was 24.5 per cent less.

As a general conclusion, Locomotive 60,000 saved from 20 to 25 per cent fuel and water as compared with locomotives of the 3800 class, operating single expansion with 195, pounds boiler pressure and without feed-water heaters.

Southern Pacific Company

During the late summer and fall of 1927, Locomotive Number 60,000 was tested on the Pacific lines of the Southern Pacific Company. When received on the road, it had made about 75,000 miles and was in good condition. At the Sacramento Shops of the Southern Pacific Company the locomotive was changed from a coal to an oil burner, and was given a thorough inspection. Driving tires were turned, and new piston and valve stem packing applied where needed.

The Southern Pacific tests were run on the Sacramento Division, in both passenger and freight service. Dynamometer Car number 137 was used on all runs, and the locomotive was indicated and very complete records were taken. A standard Southern Pacific twelve-wheeled tender was used with water and oil tanks calibrated.

These tests were run between Roseville, California, and Sparks, Nevada, a distance of 139.2 miles. This is a mountain section, with difficult operating conditions. It is double tracked and rock ballasted, and laid with rails weighing 110 and 130 pounds per yard. Eastbound, from Roseville to Colfax, a distance of 35.9 miles, the steepest ascending grade is 1.5 per cent, with maximum curves (compensated) of four degrees. From Colfax to Emigrant Gap, a distance of 30 miles, the maximum grade is 2.665 per cent, one mile in length, with curves compensated. For the greater part of the remainder the maximum grade averages 2.2 per cent, with curves uncompensated. From Emigrant Gap to Summit, 21 miles, the grade for the greater part of the distance is about 1.8 per cent. The sharpest curves are approximately ten degrees. From Summit to Sparks, 53.2 miles, the grade is descending.

Westbound, from Sparks to Truckee, a distance of 38 miles, the maximum grade is one per cent, except for a few short stretches where it is a little heavier. The sharpest curves are ten degrees compensated. From Truckee to Summit, a distance of 15.6 miles on the westbound track, the maximum grade is two per cent with curves of ten degrees. The line descends the entire distance from Summit to Roseville.

Locomotive 60,000 as Equipped for Oil Burning on the Southern Pacific Lines

In the tests with freight trains, the tonnage was adjusted so that it could be handled without helpers. The passenger trains were handled in the same way.

California crude oil was used for fuel on these tests, and was fired with a Von Bodeningles burner, located back of the arch tubes in the center of the firebox, with the tip pointing toward the firedoor. Considerable experimenting was necessary before the engine would steam well when burning oil.

The general results of the tests are given in the following table. The data covers the performance on ascending grades only.

                                                                      TESTS WITH FREIGHT TRAINS.TESTS WITH PASSENGER TRAINS.
                                                                         AVERAGES OF 3 RUNS IN     AVERAGES OF 3 RUNS IN
                                                                             EACH DIRECTION           EACH DIRECTION
                                                                     |-------------------------|--------------------------|
                                                                         A        B        C        D        E        F
Total miles run (3 trips)............................................  153.9    114.0    146.8      153    114.0     46.8
Average train speed, miles per hour..................................   14.6    15.70    12.43    20.13     30.8     21.1
Weight of train, exclusive of locomotive, tons.......................   1083     2522     1348      794      853      853
Adjusted weight of train, tons.......................................   1073     2591     1352      794      853      853
Number of cars in train..............................................   21.6     78.6     35.3     11.3       12       12
Temperature feed-water to heater.....................................    690       55      600     52.7       48       44
                       from heater...................................    224      223      221      229      226      228
            steam in steam pipe......................................    572      586      572      612      594      602
Superheat of steam in steam pipe.....................................   1430      154     1390      197      192      190
Temperature in smokebox..............................................   5670     5810     5800     5360      512      520
Boiler pressure......................................................    329      341      341      341      343      341
Heating value of oil, B.T.U. per pound............................... 18,500   18,500   18,500   18,500   18,500   18,500
Total oil fired, pounds (3 trips)...................................  42,344   30,440   14,816   39,360   17,072   10,752
Oil fired per hour, pounds...........................................  3,911    4,181    3,771    5,171    4,592    4,843
Total water delivered to boiler, pounds (3 trips)....................508,281  365,780  178,475  411,624  184,988  112,106
Steam to superheater, pounds per hour................................ 47,102   50,009   47,617   52,312   49,074   50,527
Superheated steam per pound oil, pounds.............................. 12.046   11.866   12.386     9.82    10.65    10.28
Boiler efficiency, including feed-water heater, per cent...............81.71    81.71    84.90    68.87     74.5     72.9
  "        "       excluding   "    "     "      "   "  ...............73.31    72.90    76.27    60.74     65.9     64.2
Steam used by engine per hour, pounds................................ 45,180   47,748   45,738   50,146   46,824   48,504
Indicated horse-power................................................  2,344    2,524    2,248    2,819    2,571    2,765
Oil per 1. H.P.-hour, pounds, excluding auxiliaries..................  1.601    1.594    1.642    1.811    1.710    1.706
 "   "  "   "    "      "     including     "      ..................  1.668    1.676    1.710    1.846    1.784    1.756
Steam per 1. H.P.-hour, pounds, excluding auxiliaries................  19.27    18.92    20.35    17.79    18.21    17.54
 "   "  "   "    "      "       including     "      ................  20.09    19.81    21.18   18.558   19.085   18.271
Average drawbar pull on level, pounds................................ 54,520   54,884   58,851   45,772   23,565   41,316
Drawbar horse-power, as measured.....................................  1,678    2,094    1,620    1,844    1,546    1,764
Equivalent drawbar horse-power on level..............................  2,117    2,292    1,949    2,457    1,936    2,326
Oil per equivalent D.B.-H.P.-hour, pounds, including auxiliaries.....  1.847    1.839    1.972    2.119    2.369    2.088
Steam per   "       "    "    "      "         "           "           22.25    21.82    24.43    21.29   25.348   21.722
Machine efficiency of locomotive, per cnt............................  90.31    90.81    86.70     87.1     75.3     84.1
Thermal     "       "     "        "   " ............................   7.45     7.48     6.89    16.49     5.81     6.59

Column Headings:
A- Eastbound Colfax to Summit
B- Westbound Sparks to Truckee
C-    "      Truckee to Summit
D- Eastbound Colfax to Summit
E- Westbound Sparks to Truckee
F-    "      Truckee to Summit

Great Northern Railway

Coming east, Locomotive Number 60,000 hauled tonnage trains from Delta, near Everett, Washington, to Minot, North Dakota, a distance of about 1265 miles. The run was made in January, 1928.

Oil was used for fuel on this run. Owing to the construction of the firebox, it was necessary, as on the Southern Pacific, to place the burner above the bottom boiler tubes. This probably did not permit the most complete combustion, but at no time did the engine lag for steam.

The locomotive, as a rule, held the rail well, and little difficulty was experienced in starting heavy trains. Helpers were used at five points where grade conditions were difficult.

The following table gives a log of the trip, with data covering fuel and water consumed:

        FROM                To         A      B     C      D         E            F       G         H       I     J       K

Delta............  Skykomish......    52.0   1.0#   77    3488    3hr.  6 min.   16.8   134,460   12,705   907   85.66  159.33
Skykomish.......   Appleyard......    83.0                                Ran Light
Appleyard........  Hillyard........  177.0   1.0#   84    3500    9hr. 12 min.   19.2   337,015   30,777   578   52.82   98.25
Hillyard.........  Troy...........   134.8   1.0@   105   4500    7hr.  5 min.   19.0   228,613   20,005   410   35.97   66.90
Troy............   Whitefish.......  134.S   0.70   114   5005    8hr. 12 min.   16.4   283,790   27,689   485   47.24   87.87
Whitefish........  Cutbank.......    127.0   1.8#   66    2913    6hr. 47 min.   18.8   221,885   18,130   648   53.00   98.58
Cutbank.........   Havre..........   129.3   0.8    68    3230    5hr.  1 min.   25.8   142,805   10,680   342   25.57   47.56
Havre...........   Glasgow........   153.0   0.4    96    5024    5hr. 11 min.   29.5   226,820   22,338   298   29.36   54.61
Glasgow.........   Williston.......  156.4   0.4@   94    4900    6hr. 22 min.   24.6   247,645   26,761   323   34.91   64.93
Williston......... Minot..........   120.3   0.7    68    3780    5hr.  8 min.   23.4   192,250   17,032   423   37.45   64.83

         Helpers used on these ruling grades.

Column Header Substitutions:
A- Distance in Miles
B- Ruling Grade, Per Cent
C- Number of Cars
D- Tonnage
E- Time Running
F- Average Speed, Miles per Hour
G- Total Water Used, Pounds
H- Pounds Water Per 1000 Gross Ton Miles
I- Pounds Oil Per 1000 Gross Ton Miles
J- Coal Equivalent, Pounds Per 1000 Gross Ton Miles
Subsequent to the run described on page 79, engine 60,000 was changed to burn coal, and was tested on two round trips between Minneapolis and Superior. On this divisior the prevailing loaded movement is southbound out of Superior, and the most difficult stretch is from Boylston to Nickerson, a distance of 23.5 miles, on which there is an ascending grade averaging 21.12 feet per mile. The locomotive made an excellent showing on this division, the general results being given in the following table:

            DATE OF  TEST         2-5-'28    2-7-'28   2-8-'28   2-9-'28
Direction......................     North      South     North     South
Number cars...................         77         82        75        91
Tonnage......................        1680       4332      1750      5508
Time on road..................       8-45       8-15      9-15      9-54
Time running..................       5-25       6-13      6-07      7-06
Mileage.......................        143        143       143       141
Average speed, m.p.h...........      26.4       23.0      23.2      19.9
Water used, pounds.............   187,325    226,600   205,100   279,075
Coal used, pounds..............    30,450     36,540    28,710    42,630
Evaporation....................      6.15       6.22      7.14      6.54
Gross ton miles...............    240,240    619,476   250,250   775,923
Pounds coal per gross ton mile..      126       58.8       114      54.9
We feel that these road tests fully bear out the exceedingly encouraging results obtained on the Pennsylvania's stationary plant at Altoona. At no time, while under test, did the locomotive require major repairs; and the comments made on its performance, by the officials of the roads on which it was used, were generally highly favorable. Furthermore, it was worked under quite as great a variety of conditions as a locomotive of its type and capacity would be called upon to meet in regular service. An analysis of the results obtained, as presented in this publication, will, we feel confident, demonstrate the soundness of the principles underlying the design of Locomotive 60,000.


Return to Table of Contents
